Class 150, 300, & 600
(Series 950, 951, 952, 953, 954, 960, 961, 962, 963, 964, 970, 971, 972, 973, 974)
Sizes Available:
- 2″, 2-1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″,
28″, 30″, 32″, 36″, 40″, 42″, 48″, 52″, 56″, 60″, 64″, 72″ - Larger Sizes Can be Fabricated
Exotic Alloys
Are Our Specialty

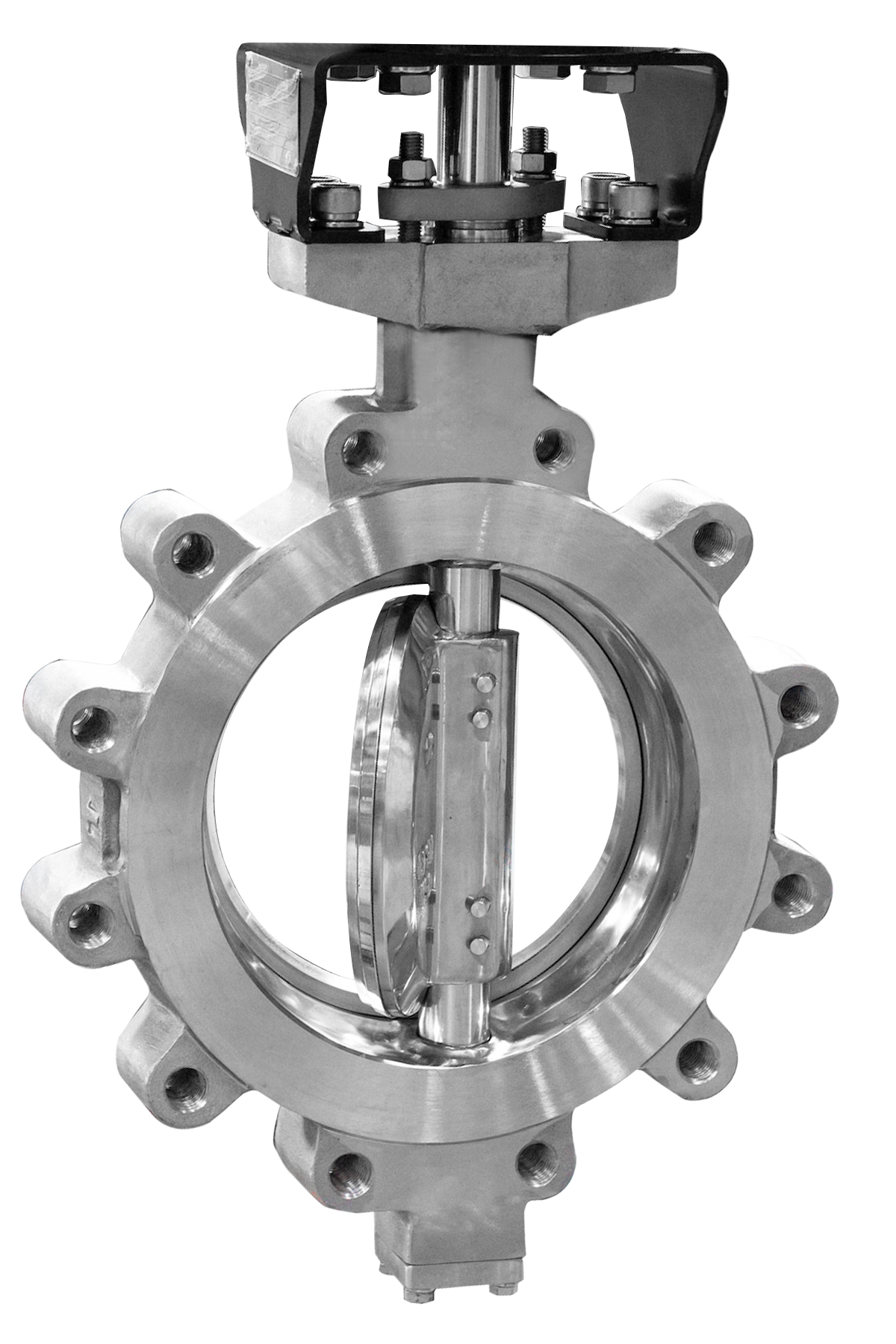

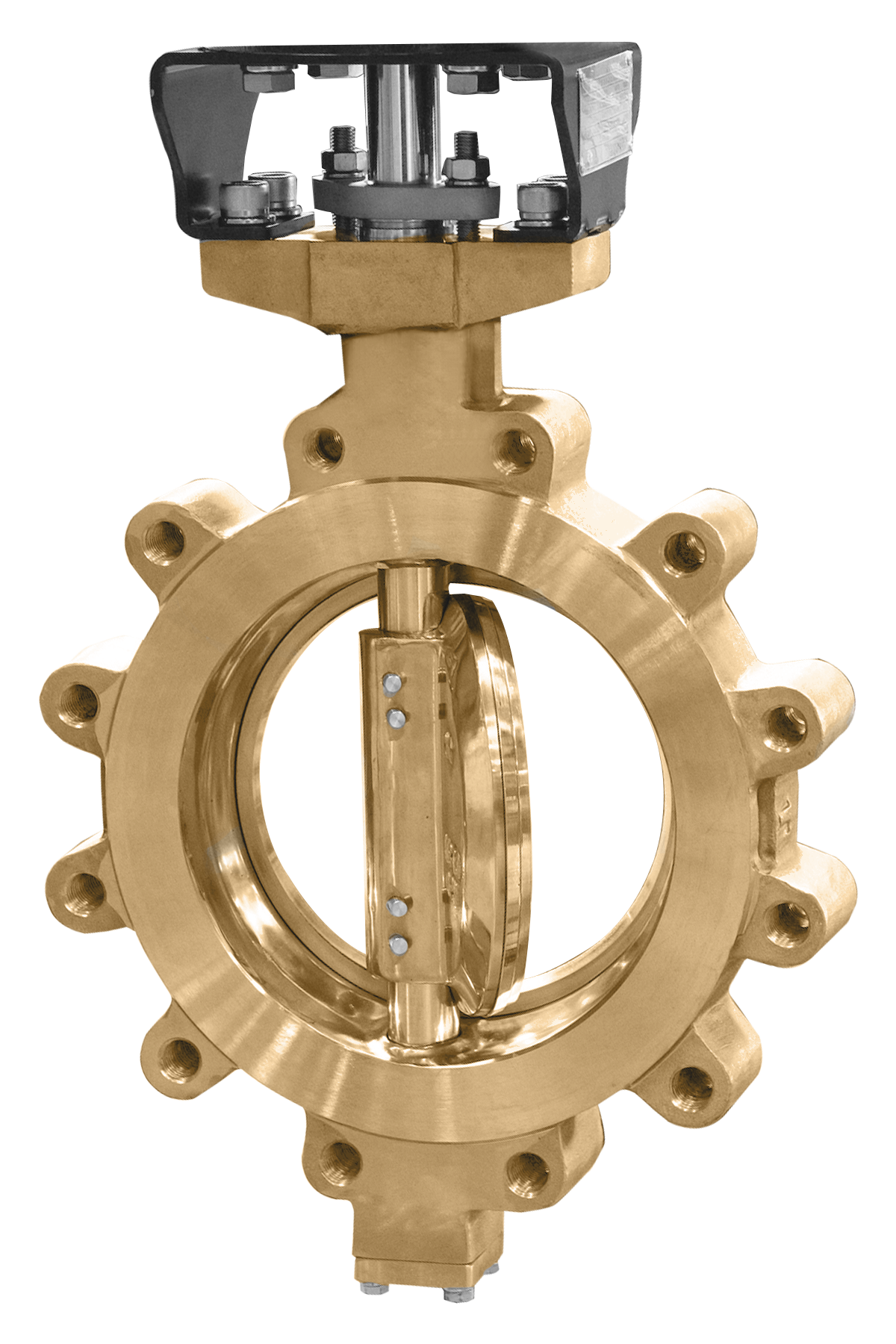

Our Triple Offset Butterfly Valves are available in special materials including Aluminum Bronze, Duplex SS, Super Duplex, Inconels, Incoloys, etc.
Description:
- ANSI 150, 300, & 600 in all styles
- Wafer, Lugged, & Flanged styles
- A broad selection of materials available
- Blow Out Proof stem design
- Stainless Steel disc & stem standard on stocked trims
- TFM 1600 Seats are standard, other soft seats are available
- Fire Safe & Metal seated versions are available
- Class VI / Bubble Tight sealing in preferred direction
- Dead End Service to full pressure rating in preferred direction
- Replaceable body disc
Series Designations:
- 950 – CLASS 150 – ANSI/DIN WAFER
- 951 – CLASS 151 – ANSI LUG
- 952 – CLASS 152 – DIN LUG
- 953 – CLASS 153 – ISO 5752 FLANGED (SHORT)
- 954 – CLASS 154 – B16.10 FLANGED (LONG)
- 960 – CLASS 300 – ANSI/DIN WAFER
- 961 – CLASS 301 – ANSI LUG
- 962 – CLASS 302 – DIN LUG
- 963 – CLASS 303 – ISO 5752 FLANGED (SHORT)
- 964 – CLASS 304 – B16.10 FLANGED (LONG)
- 970 – CLASS 600 – ANSI/DIN WAFER
- 971 – CLASS 601 – ANSI LUG
- 972 – CLASS 602 – DIN LUG
- 973 – CLASS 603 – ISO 5752 FLANGED (SHORT)
- 974 – CLASS 604 – B16.10 FLANGED (LONG)
