Unparalleled Range-Ability
w/ Equal Percentage Flow

(Series C50, C51, C52, C53, C60, C61, C62, C63)

Sizes Available:

  • 3” Through 48” Sizes & Larger, Class 150 & 300 Double Offset Valves

Series Designations:

  • C50 – CLASS 150 – ANSI/DIN WAFER
  • C51 – CLASS 150 – ANSI LUG
  • C52 – CLASS 150 – DIN LUG
  • C53 – CLASS 150 – ISO 5752 FLANGED (SHORT)
  • C60 – CLASS 300 – ANSI/DIN WAFER
  • C61 – CLASS 300 – ANSI LUG
  • C62 – CLASS 300 – DIN LUG
  • C63 – CLASS 300 – ISO 5752 FLANGED (SHORT)

3D Flow Simulation:

Patented Spherical-Disc

Diffuser-Plate Design

This is NOT just a modified butterfly valve; it is uniquely patented design that overcomes some of the limitations of classic control valves. Compared to the industry standard Globe Valve, this design has improved control at lower flow rates, better range-ability, higher flow capacity, reduced noise and vibration, and all at a lower cost.

Design Advantages

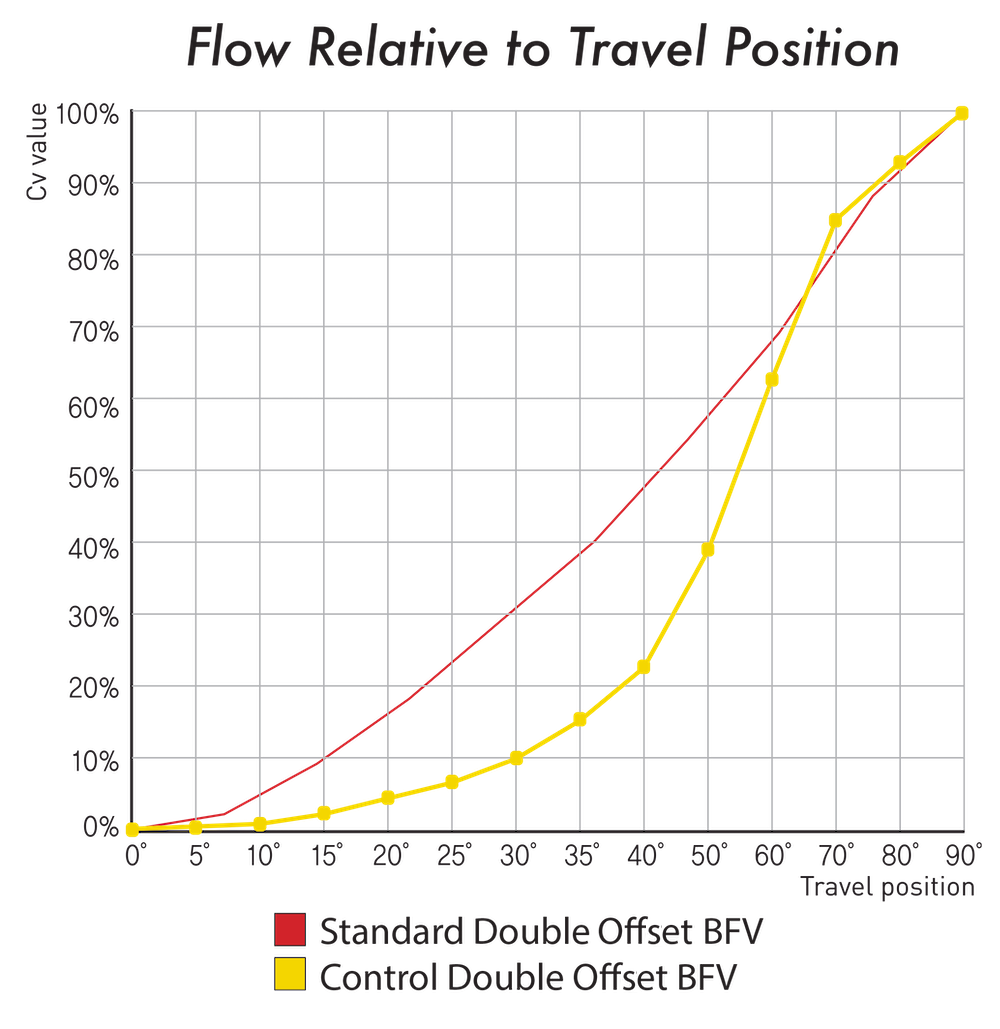

  • Unparalleled Range-Ability w/ Equal Percentage Flow
    Controllable Range 5°-85° (Rangeability up to ~600:1)
    Optimal Control Range 10°-70° (Rangeability up to ~100:1)
  • Fine-Tuned Low Flow Control and High Flow Capacity
  • Reduced Noise & Vibration

Two Control Phases

The superiority of this patented design is in the Two Control Phases.

  • Spherical-disc diffuser-plate design allows for two phases of control seamlessly integrated into Equal Percentage Flow Characteristics
  • Two optimized phases increase controllability in each phase and overall range-ability
  • Low flow phase forces all flow through the diffuser plate Diffuser plate provides low-noise, stable control for very low flow rates Allows for backpressure with very low noise

  • High flow phase allows flow to bypass around the disc

    Maximum flow capacity comparable to a fully open butterfly valve

    Flow remains parallel for minimal pressure drop, reduced noise

Scope:

Diffuser is defined as “A device for reducing the velocity and increasing the static pressure of a fluid passing through a system”.  Delta T’s unique diffuser plate butterfly valve does that by incorporating a spherical edged disc with the diffuser plate to direct and diffuse the flowstream.  This optimizes the ability to control flow and minimizes noise, cavitation and damaging high velocity jets of fluid.  In the first 30° of rotation, when pressure drop is the highest, the spherical edged disc constrains the flow, directing it through the diffuser to minimize the potential for damaging flow conditions.
  • ANSI Class 150 and 300 in Wafer, Lugged, and Flanged body styles
  • Available in a broad selection of materials
  • WCB and CF8M bodies standard
  • CF8M Stainless Steel disc and stem standard
  • A variety of soft, fire safe, and metal seats available
  • Metal seated designs (high temperature, corrosive services, metallurgical-sensitive applications) with Class IV shutoff
  • ISO 5211 actuator mounting is standard, direct mounting on 12 inch and smaller
  • Control and anti-cavitation trim plate provides a high level of control and noise reduction within the first 30° of rotation
  • Soft seated trims offer bi-directional class VI shutoff
  • Clean, field repairable design

Literature:

Flow Path & Relative Disc Rotation
