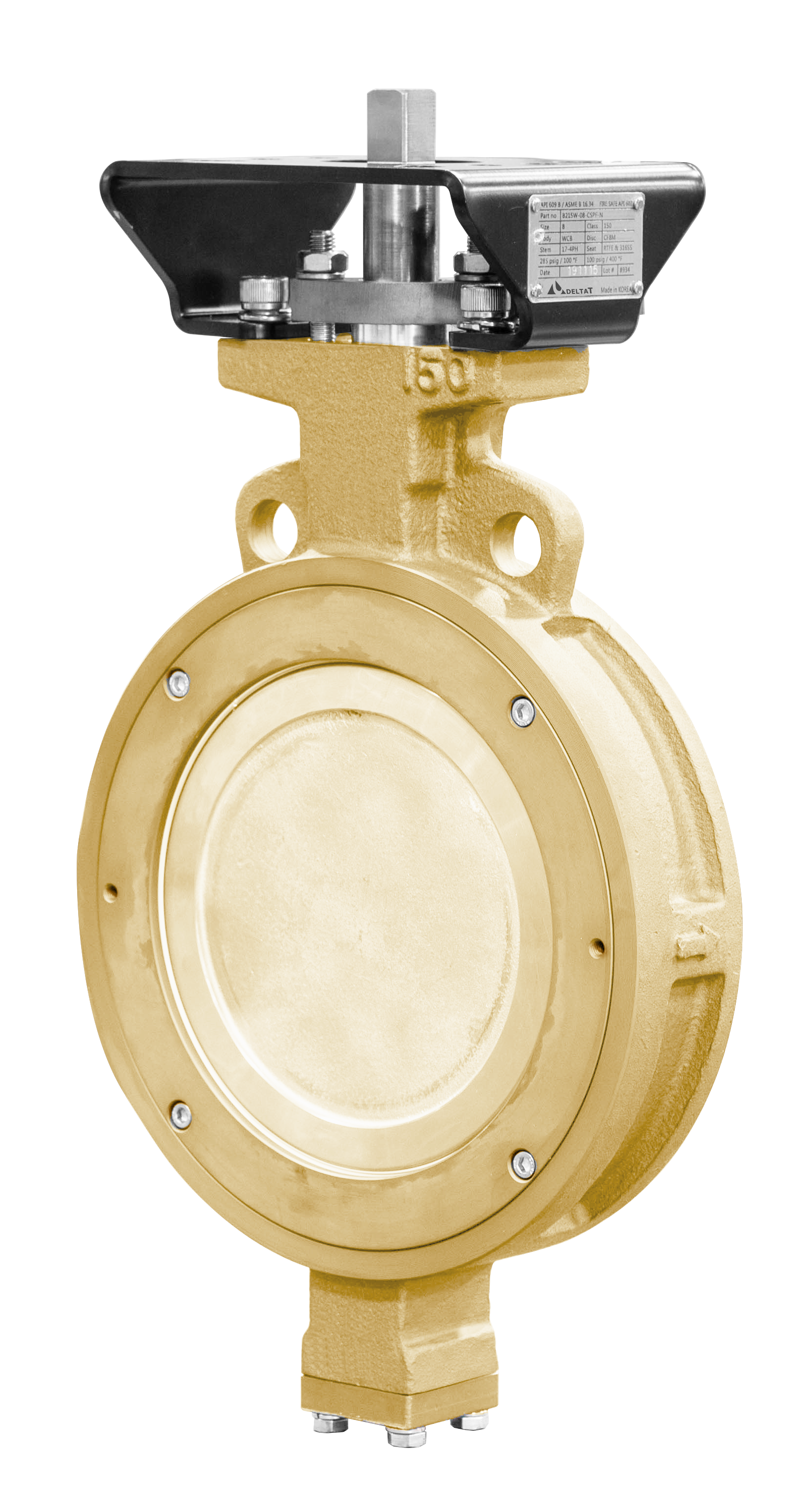

New! Expanded Generation 2

(Series 850, 851, 852, 853, 860, 861, 862, 863, 871)

Sizes Available:

  • 2″, 2-1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″

Description:

  • ANSI 150, 300, & 600 in all styles
  • Wafer, Lugged, & Flanged styles
  • WCB & CF8M bodies stocked (A broad selection of other materials available)
  • Blow out proof stem design
  • Stainless Steel disc & stem standard on stocked trims
  • TFM 1600 seats are standard, other soft seats are available
  • Fire Safe & Metal seated versions are available
  • ISO 5211 mounting is standard. (Direct mount for 12” & smaller, w/ included bracket on larger size)
  • Class VI / bubble tight bi-directional sealing on all soft seated trims
  • Dead End service to full pressure rating in preferred direction
  • Control trim w/ anti-noise & anti-cavitation features available

Series Designations:

  • 850 – CLASS 150 – ANSI/DIN WAFER

  • 851 – CLASS 150 – ANSI LUG

  • 852 – CLASS 150 – DIN LUG

  • 853 – CLASS 150 – ISO 5752 FLANGED (SHORT)

  • 860 – CLASS 300 – ANSI/DIN WAFER

  • 861 – CLASS 300 – ANSI LUG

  • 862 – CLASS 300 – DIN LUG

  • 863 – CLASS 300 – ISO 5752 FLANGED (SHORT)

  • 871 – CLASS 600 – ANSI LUG

Literature:

Generation 1

(Series 750/751 & 850/851) (Class 150 Only)

Series Designations:

  • 750 – CL150 Carbon Steel Wafer Body Design
  • 751 – CL150 Carbon Steel Lug Body Design
  • 850 – CL150 Stainless Steel Wafer Body Design
  • 851 – CL150 Stainless Steel Lug Body Design

Trim Designations:

  • 821 – CF8M Disc, 17-4 PH SS Stem, 15% Glass RTFE Seat
  • 822 – CF8M Disc, 316 SS Stem, 15% Glass RTFE Seat
  • 823 – CF8M Disc, 17-4 PH SS Stem, 100% Virgin PTFE Seat
  • 824 – CF8M Disc, 316 SS Stem, 100% Virgin PTFE Seat
  • 825 – CF8M Disc, 17-4 PH SS Stem, TFM 1600 Seat
  • 826 – CF8M Disc, 316 SS Stem, TFM 1600 Seat

Literature:

Standards and Compliance:

  • ISO 5211 – Industrial Valves Part-Turn Actuator Attachments
  • ASME B16.5 – Steel Pipe Flanges and Flange Fittings
  • ASME B16.34 Stee Valves
  • MSS-SP-6 Finishes For Pipe Flanges
  • MSS-SP-25 Standard Markings For Valves
  • MSS-SP-68 High Pressure Butterfly Valves with Offset Design
  • API 607, API 609, API 598
  • ISO 10497 Fire Type Testing
  • CE PED 97/23/EC Pressure Equipment Directive
